John Deere 544 vs 624 P-Tier Wheel Loader Compared, With Sources
John Deere 544 vs 624 P-Tier: net power, pump flow and width against the 102-in. federal baseline, each tied to Deere’s own spec pages.
Table of Contents

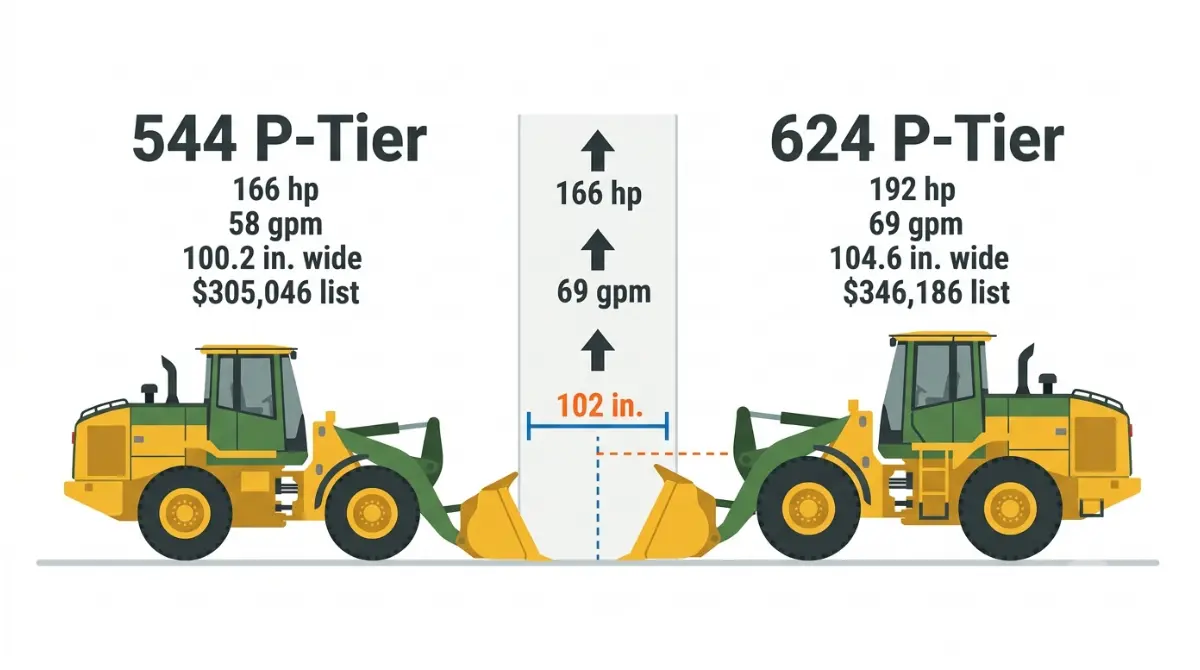

The John Deere 544 vs 624 answer: the 624 P-Tier has 192 hp net against 166 hp, weighs 34,715 lb against 30,520 lb at Deere’s base figure, pumps 69 gpm against 58 gpm, and measures 104.6 in. wide over standard tires against 100.2 in., which puts it over the 102-inch federal width baseline.
544 P-Tier vs 624 P-Tier: the differences that matter
At a glance: the six numbers
| Spec | 544 P-Tier | 624 P-Tier | Applies to |
|---|---|---|---|
| Net power | 123 kW (166 hp) at 1,700 rpm | 143 kW (192 hp) | Deere spec pages, as published |
| Base operating weight | 13,844 kg (30,520 lb) | 15,747 kg (34,715 lb) | Deere’s base figure; configuration not defined by Deere |
| Width over tires | 2,546 mm (100.2 in.) | 2,657 mm (104.6 in.) | Standard 20.5 R25 tires |
| Pump flow | 220 L/min (58 gpm) | 261 L/min (69 gpm) | Both models, as published |
| Hydraulic tank | 82.1 L (21.7 gal) | 102.8 L (27.2 gal) | Both models, as published |
| Base model list price | $305,046 | $346,186 | Contract list, rows dated 2/15/2026; not a net price |
Sources: Deere 544 P-Tier and 624 P-Tier specification pages, checked 2026-10-12; New York State contract price list (Sourcewell contract attachment), rows dated 2/15/2026. Inches are millimeters divided by 25.4; pounds are kilograms times 2.2046.
The 624 P-Tier carries 4,195 lb more base weight (34,715 − 30,520), 11 gpm more pump flow and a width that crosses the 102-inch baseline by 2.6 in. For the wider Deere lineup, see the John Deere Construction Equipment Specs by Configuration pillar.
Which section answers your question
- Hauling and permits: “Hauling each loader”
- Cost: “Price gap”
- Which to buy: “Which loader fits”
- Used machines: “Buying used”
ℹ️ Safety Note: Loading, unloading and securing a 30,000-lb-plus articulated wheel loader can crush a person, roll the machine, or drop a lost load onto people nearby. The hauling information below is general understanding of published rules and numbers; have a licensed heavy-haul carrier or certified rigger plan the load, and follow the transport section of the Deere operator’s manual.
Weight and size: what the spec sheets leave out

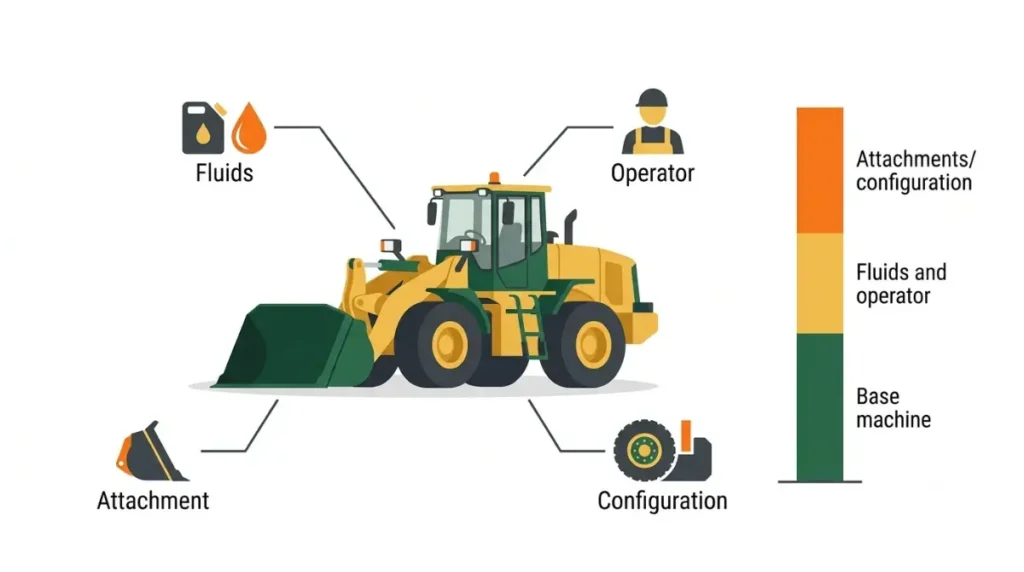

Operating weight by model year
| Model | Deere spec page | 2026 dealer-published | Applies to |
|---|---|---|---|
| 544 P-Tier | 30,520–30,598 lb (13,844–13,879 kg) | 29,943–32,353 lb (13,582–14,675 kg) | As published; weight definition and serial range unconfirmed |
| 624 P-Tier | 34,715–34,810 lb (15,747–15,790 kg) | 34,238–36,912 lb (15,530–16,743 kg) | As published; weight definition and serial range unconfirmed |
Sources: Deere 544 P-Tier and 624 P-Tier pages; West Central Equipment 2026 listings; checked 2026-10-12.
The two sources disagree at both ends of each range, and Deere’s page does not say what the 544P operating weight includes (fluids, operator, attachments).
Dimensions in inches, converted from millimeters
| Dimension | 544 P-Tier | 624 P-Tier |
|---|---|---|
| Wheelbase | 2,930 mm = 115.4 in. | 3,090 mm = 121.7 in. |
| Height over cab | 3,330 mm = 131.1 in. | 3,400 mm = 133.9 in. |
| Length with bucket | 7,490 mm = 294.9 in. | 7,760 mm = 305.5 in. |
| Ground clearance | 400 mm = 15.7 in. | 384 mm = 15.1 in. |
Source: Deere spec pages, standard 20.5 R25 tires, checked 2026-10-12.
G-Tier and L-Series numbers are not P-Tier numbers
Several used-listing pages print 30,520–32,827 lb and 34,715–37,174 lb. Those ranges equal Deere’s own 544L and 624L ranges, so treat them as L-Series data. The 544 G-Tier is a third set of figures, covered in the used-buying section.
Power and hydraulics: 166 hp vs 192 hp, 58 vs 69 gpm
Engine, torque and torque rise
| Spec | 544 P-Tier | 624 P-Tier | Applies to |
|---|---|---|---|
| Engine (Deere pages) | PowerTech PVS 6068, 6.8 L (414 cu in.) | PowerTech PVS 6068, 6.8 L (414 cu in.) | As published on Deere’s pages; see the 2026 conflict below |
| Peak torque | 740 Nm (546 lb-ft) | 923 Nm (681 lb-ft) | As published |
| Torque rise | 47% | 58% | Deere driveline tab |

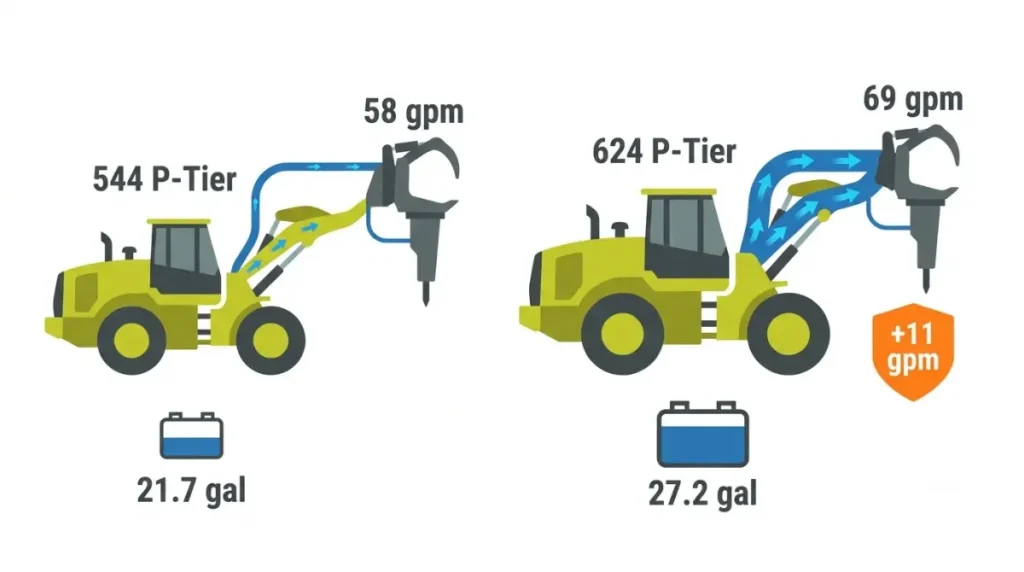

Pump flow, pressure and tank size
| Spec | 544 P-Tier | 624 P-Tier | Applies to |
|---|---|---|---|
| Pump | Variable-displacement axial piston, 220 L/min (58 gpm) | Variable-displacement axial piston, 261 L/min (69 gpm) | As published |
| Hydraulic tank | 82.1 L (21.7 gal) | 102.8 L (27.2 gal) | As published |
| System pressure | 251.66 bar (3,650 psi) | Not published here | Deere lists 248.21 bar and 3,675 psi for the 624, which do not match |
Sources: Deere 544 P-Tier and 624 P-Tier pages and dealer spec mirror, checked 2026-10-12. The 624’s rated speed also reads 1,600 rpm on one Deere tab and 1,700 rpm on another, so it is omitted.
The 624P hydraulic flow of 69 gpm is 11 gpm above the 544’s 58 gpm, and the tank holds 5.5 gal more (27.2 − 21.7).
The 2026 544 P-Tier engine question
| Source | Checked | Engine | Fuel capacity |
|---|---|---|---|
| Deere 544 P-Tier page | 2026-10-12 | PowerTech PVS 6068 | 298 L (79 gal) |
| West Central Equipment, 2026 544 P-Tier | 2026-10-12 | PowerTech PSS 4045 | 265 L (70 gal) |
| Deere 624 P-Tier page | 2026-10-12 | PowerTech PVS 6068 | 299 L (79 gal) |
| West Central Equipment, 2026 624 P-Tier | 2026-10-12 | PowerTech PVS 6068 | 227 L (60 gal) |
Deere’s industrial-engine pages describe the 4045 family as a 4.5 L, 4-cylinder line, but its use in the 544 P-Tier is unverified, and one dealer page lists both engines for the same machine. Confirm the engine model by serial number with a Deere dealer parts or service desk before relying on either column.
Hauling each loader: width, height and tie-down rules
Width over tires against the 102-inch baseline
The 624P transport width is 104.6 in. on Deere’s figure, so wide-load rules for your route come into play; the 544 P-Tier measures under the baseline on the same figure.
| Machine | Calculation | Result |
|---|---|---|
| 544 P-Tier | 2,546 mm ÷ 25.4 = 100.2 in. | 1.8 in. under 102 in. |
| 624 P-Tier | 2,657 mm ÷ 25.4 = 104.6 in. | 2.6 in. over 102 in. |
Source: Deere spec pages, width over standard 20.5 R25 tires, checked 2026-10-12.
That figure leaves out mirrors, fenders and attachments, so use the transport dimensions in the Deere operator’s manual. The John Deere wheel loader models guide covers the rest of the range.
📜 The Rule: 23 CFR 658.15(a) provides that no state may set a width limit other than 102 in. on the National Network, and (c) allows states to issue special-use permits above 102 in. Whether a wider load moves is a state decision. Verified 2026-10-12; eCFR current as of 10/07/2026.
Height on the trailer deck
Height over cab is 3,330 mm (131.1 in.) for the 544 and 3,400 mm (133.9 in.) for the 624. Add the trailer’s deck height, which you supply. No federal height limit was verified for this article, so the height rule comes from each state.
Federal securement for wheel loaders
📜 The Rule: 49 CFR 393.130 covers wheeled or tracked machinery of 10,000 lb or more and names front-end loaders. Paragraph (b)(2) requires an articulated vehicle to be restrained against articulation in transit. Paragraph (c)(1) requires at least four tiedowns restraining lateral, forward, rearward and vertical movement, placed per (c)(2) as close as practicable to the front and rear or at designed mounting points. Verified 2026-10-12; eCFR current as of 10/08/2026.
Both loaders exceed 10,000 lb on every weight in Section 2.
⚠️ Hazard: An articulated loader left free at the hinge can swing in transit, and a failed chain or binder can release the load onto people near the trailer, causing crush and struck-by injury. A licensed heavy-haul carrier or certified rigger plans and performs the securement.
What states do differently
🗺️ State Check: The federal baseline is 102 in.; states issue the permits and set their own thresholds. Look up your route’s width, height and weight thresholds and the issuing office.
| State | Width without permit | Height limit | Permit issued by | Source, checked |
|---|---|---|---|---|
| California | 8 ft 6 in. (102 in.) | 14 ft | Caltrans | Caltrans, retrieved 2026-10-09 via our wheel-loader guide |
| Four more states |
🧮 Run the Numbers: Enter each model’s width, height, length and weight into the Machine Transport Dimension & Permit Checker.
✅ Do This: Ask a licensed heavy-haul carrier or certified rigger to confirm the permit requirement for your route and the securement plan for your actual trailer, using the operator’s manual transport dimensions.
Price gap: contract, used and rental numbers
New: state-contract list prices
| Model | Base model list price | Discount column shown | Applies to |
|---|---|---|---|
| 544 P-Tier | $305,046 | 39% | Rows dated 2/15/2026 |
| 624 P-Tier | $346,186 | 38% | Rows dated 2/15/2026 |
Source: New York State contract price list, John Deere Shared Services, Sourcewell Master Contract #011723-JDC and NY State Contract #PC70889, document as of March 6, 2026; checked 2026-10-12. U.S. dollars, New York contract.
The 624P price gap on base model list is $41,140, or 13.5% ($41,140 ÷ $305,046). The document does not say how its “Sourcewell Discount” column is applied, so no net price is published here.
Used: asking prices with hours
| Model | Year | Hours | Asking price | Location |
|---|---|---|---|---|
| 544 P-Tier | 2021 | 255 | $209,500 | Spokane, WA |
| 544 P-Tier | 2022 | 1,713 | $173,100 | Canastota, NY |
| 544 P-Tier | 2023 | 2,501 | $155,300 | Canastota, NY |
| 624 P-Tier | 2022 | 4,685 | $129,000 | Harris, MN |
| 624 P-Tier | 2022 | 5,466 | $128,000 | Womelsdorf, PA |
| 624 P-Tier | 2022 | not shown | $175,000 | Turlock, CA |
These are asking prices from dealer listings, not sale prices. Machinery Trader shows 198 listings for the 624 P-Tier from $64,500 to $314,150. Two implausible listings were excluded.
Rental: what is and is not published
One 624 P-Tier dealer listing in Des Moines, IA shows $700 per day, $2,100 per week and $6,300 per month; its date is not shown, and no 544 P-Tier rate was retrieved. Treat it as a single undated data point.
🧮 Run the Numbers: The Owning vs. Renting Breakeven Calculator needs the purchase price, your annual hours and a monthly rental rate.
✅ Do This: Ask a Deere dealer or equipment appraiser for current net pricing on the exact configuration. This article offers no fair-price, financing or tax guidance.
Which loader fits: bucket, reach and trailer limits
Bucket and reach differences
| Criterion | 544 P-Tier | 624 P-Tier | Gap |
|---|---|---|---|
| Heaped capacity | 2.3 m³ (3 cu yd) | 2.7 m³ (3.5 cu yd) | 0.4 m³ (0.5 cu yd) |
| Reach at 2,130 mm, 45-degree dump | 1,510 mm (59.4 in.) | 1,590 mm (62.6 in.) | 80 mm (3.1 in.) |
| Pivot-pin height | 3,890 mm (153.1 in.) | 3,960 mm (155.9 in.) | 70 mm (2.8 in.) |
| Maximum turning circle | 11,580 mm (38.0 ft) | 12,040 mm (39.5 ft) | 460 mm (1.5 ft) |
Source: Deere spec pages, checked 2026-10-12. Both models list a bucket range of 1.9–4.0 m³ (2.5–5.25 cu yd); Deere does not name the bucket behind the heaped-capacity field.
The 70 mm pivot-pin gap means the two machines reach almost the same height, so the wheel loader size to buy turns on width, power, flow and price.
When the 544 P-Tier’s smaller footprint matters
Choose on these documented thresholds: a width of 100.2 in. against the 102-in. baseline, a list price $41,140 lower, and 4,195 lb less base weight.
When the 624 P-Tier’s extra flow and weight matter
The 624 offers 26 more horsepower (192 − 166), 11 gpm more pump flow and 0.4 m³ more heaped capacity. Deere does not publish a productivity comparison in these fields, so none is claimed here.
Buying used: serial checks, hours and the G-Tier mix-up
Read the serial and ask for the engine model
Listings show serial prefixes such as 1DW544PA (544 P-Tier), 1DW624PA (624 P-Tier) and 1YN544GA (544 G-Tier); this is an observation, not a decoding. Ask the seller for the full serial and the engine model, since Section 3 shows 2026 544 P-Tier listings that differ from Deere’s page.
G-Tier, P-Tier and L-Series are different machines
| Machine | Net power | Published weight | Source |
|---|---|---|---|
| 544 G-Tier | 125 kW (168 hp) at 1,800 rpm | 12,993–13,556 kg (28,646–29,886 lb) | Deere Latin America page; |
| 544 P-Tier | 123 kW (166 hp) at 1,700 rpm | 30,520–30,598 lb | Deere U.S. page |
| 544L | Not retrieved | 30,520–32,827 lb | Deere 544L page |
Checked 2026-10-12. For what the tiers mean, see John Deere P-Tier explained.
Hours against asking price
The six used listings in Section 5 span 255 to 5,466 hr. Match the hour meter to the service records, and treat any gap as a question for the seller.
✅ Do This: Ask a Deere dealer technician or equipment appraiser for a pre-purchase inspection and the engine model by serial number. Ask the dealer about open campaigns on that serial.
Frequently asked questions
1. How much does a John Deere 544 P-Tier weigh?
Deere’s page lists 30,520–30,598 lb (13,844–13,879 kg); 2026 dealer pages publish 29,943–32,353 lb, with the weight definition unconfirmed.
2. How much does a John Deere 624 P-Tier weigh?
Deere’s page lists 34,715–34,810 lb (15,747–15,790 kg); 2026 dealer pages publish 34,238–36,912 lb, with the weight definition unconfirmed.
3. How much horsepower does a 624 P-Tier have?
The 624 P-Tier is rated at 143 kW (192 hp) net, against 123 kW (166 hp) for the 544 P-Tier, per Deere’s spec pages.
4. How much hydraulic flow does each loader have?
Hydraulic flow is 220 L/min (58 gpm) on the 544 P-Tier and 261 L/min (69 gpm) on the 624 P-Tier, both variable-displacement piston pumps.
5. How wide is a 624 P-Tier?
A 624 P-Tier is 104.6 in. (2,657 mm) wide over standard 20.5 R25 tires per Deere, excluding mirrors, fenders and attachments.
6. Do I need a permit to haul a 624 P-Tier?
Wide-load rules apply: its 104.6 in. width exceeds the 102-in. federal baseline in 23 CFR 658.15, and states issue the permits. Next step: ask a licensed heavy-haul carrier to confirm your route.
7. What does federal law require to secure a wheel loader?
49 CFR 393.130 requires at least four tiedowns on machinery of 10,000 lb or more, with an articulated vehicle restrained against articulation in transit. Next step: a certified rigger or carrier plans the securement.
8. How much more does a 624 P-Tier cost than a 544 P-Tier?
The 624 P-Tier lists $41,140 (13.5%) higher: $346,186 against $305,046, base model list on a New York contract dated 2/15/2026. Next step: ask a Deere dealer for current net pricing.
9. Did the 544 P-Tier engine change for 2026?
Unconfirmed: Deere’s page lists a PowerTech PVS 6068, while a 2026 dealer listing shows a PSS 4045 and 70 gal of fuel. Next step: confirm the engine model by serial number with a Deere dealer.
10. What is the difference between a 544 G-Tier and a 544 P-Tier?
A 544 G-Tier lists 168 hp at 1,800 rpm on Deere’s Latin America page; the 544 P-Tier is 166 hp at 1,700 rpm.
Where this leaves you
You are choosing between a 624 P-Tier that adds 26 hp and 11 gpm of flow, and a 544 P-Tier that lists $41,140 lower, weighs 4,195 lb less at Deere’s base figure and stays under 102 in. wide. The next question is which trailer and permit the 624 needs: run each model’s width, height, length and weight through the Machine Transport Dimension & Permit Checker, then enter purchase price, annual hours and monthly rental into the Owning vs. Renting Breakeven Calculator. For the wider Deere lineup, see the pillar guide and the wheel loader models article.
Before hauling, have a licensed heavy-haul carrier or certified rigger confirm your route’s permit and the securement plan for your trailer; before buying, have a Deere dealer confirm the engine model by serial number.
Sources
All pages checked 2026-10-12 unless noted.
- Deere: 544 P-Tier, 624 P-Tier, dealer spec mirrors for the 544 P-Tier, 624 P-Tier and 544L
- Deere: Latin America wheel loaders page (544 G-Tier); 4045CI550 industrial engine page (4045 family)
- West Central Equipment 2026 listings: 544 P-Tier, 624 P-Tier
- eCFR: 23 CFR 658.15, 49 CFR 393.130
- New York State contract price list (Sourcewell Master Contract #011723-JDC, NY State Contract #PC70889)
- Listings: Machinery Trader 624 P-Tier, Construction Equipment Guide 544 P-Tier example, RentalYard 624 P-Tier rental
- California limits: Caltrans, as cited in our wheel loader models guide, retrieved 2026-10-09
